Description
Specification

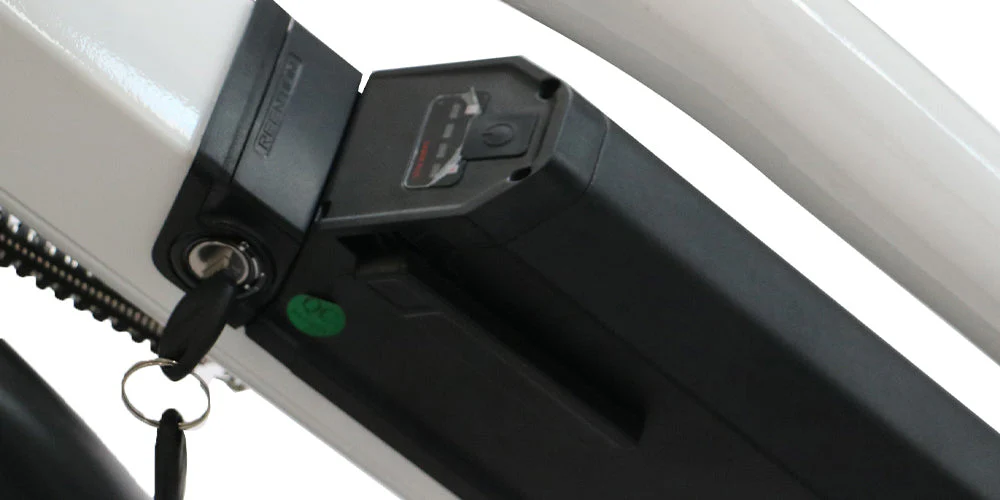

Battery
48V 14Ah Samsung (Main) — 20Ah optional + Secondary 15/17Ah
48V 14Ah Samsung (Main) — 20Ah optional + Secondary 15/17Ah
Range
130+ km with dual battery (ideal conditions)
130+ km with dual battery (ideal conditions)

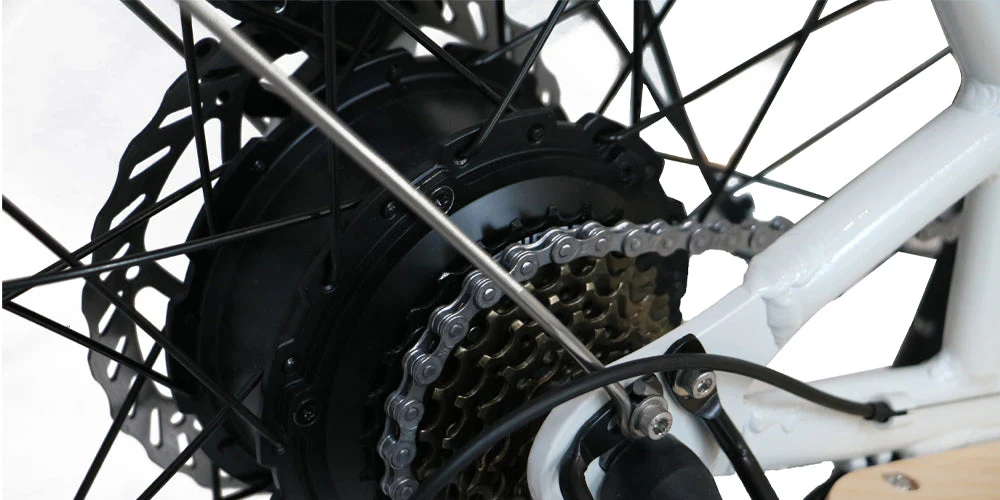

Motor
48V 250W ENA rear hub motor, 45 Nm torque
48V 250W ENA rear hub motor, 45 Nm torque
Maximum Speed
25 km/h
25 km/h
Payload Capacity
200 KG
200 KG
Rider Height
158 – 185 CM
158 – 185 CM
Charger
AU standard 2.0A smart charger
AU standard 2.0A smart charger
Controller
48V 28A
48V 28A
Display
CDC6 display
CDC6 display
Pedal Assist
0 – 5 level intelligent assist
0 – 5 level intelligent assist
Weight
38.5 KG
38.5 KG
Box Dimensions
176 L x 30 W x 85 H cm
176 L x 30 W x 85 H cm
Components
- Tyres: Chaoyang 24″ x 2.4″
- Rims: 24″ black alloy
- Frame: Aluminum alloy
- Brake Lever: Hydraulic disc brake levers with motor cutoff switch
- Brake Rotor: 180mm hydraulic disc brakes
- Shifter: Shimano derailleur 7-speed gear shift system
- Freewheel: Shimano 14-28T
- Chainring: 48T chain-wheel crank with cover
- Crank: 170mm forged alloy
- Throttle: Half twist throttle
- Handlebar: Adjustable stem, matte black
- Stem: Quick release, folding, 28.5mm clamp diameter
- Saddle: Velo saddle, 83–105 cm ground height
- Front Light: LED light
- Rear Light: Integrated brake light
- Pedal: High quality nylon pedals
- Baby Seats: Not included
- Tool: Included
Package Includes
- ✓ Max-Cargo eBike x 1
- ✓ AU Smart Charger x 1
- ✓ Tool Kit Included

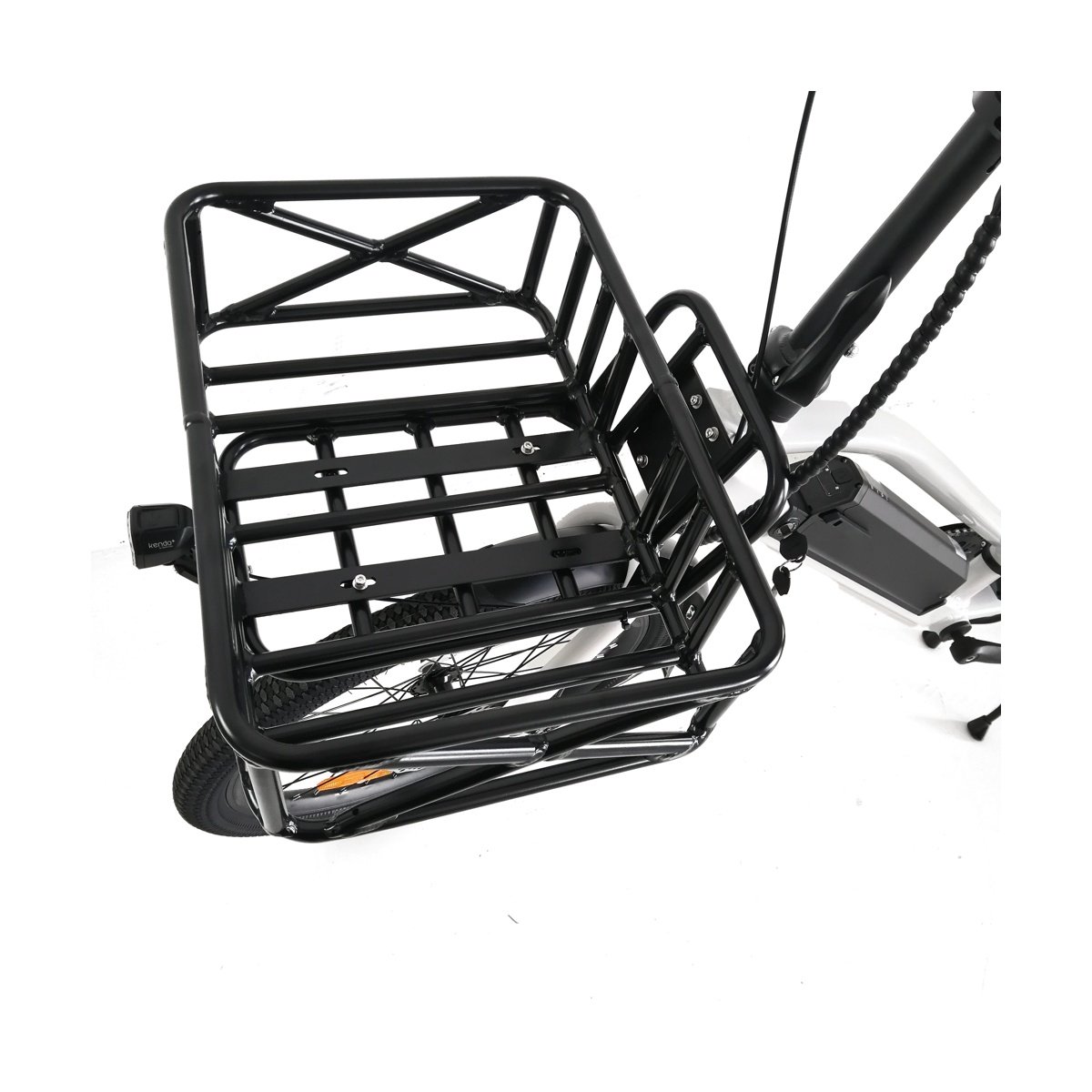

Optional: Basket kit, secondary 15/17Ah battery, and safety child seats available separately.
💵 Great Value
200 kg payload, 130+ km dual-battery range, and Shimano 7-speed — hard to beat at this price point.
